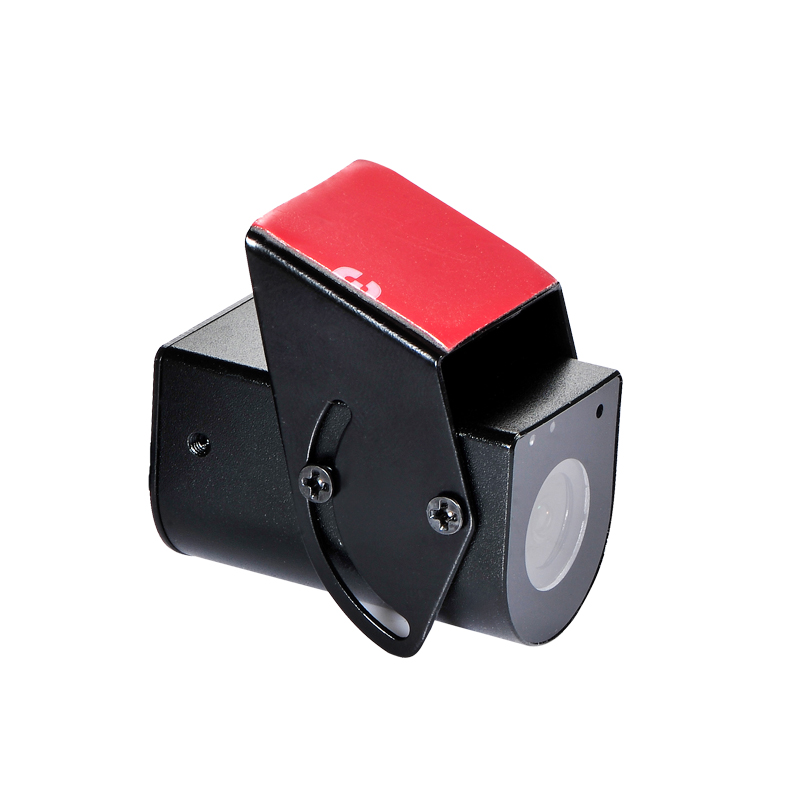

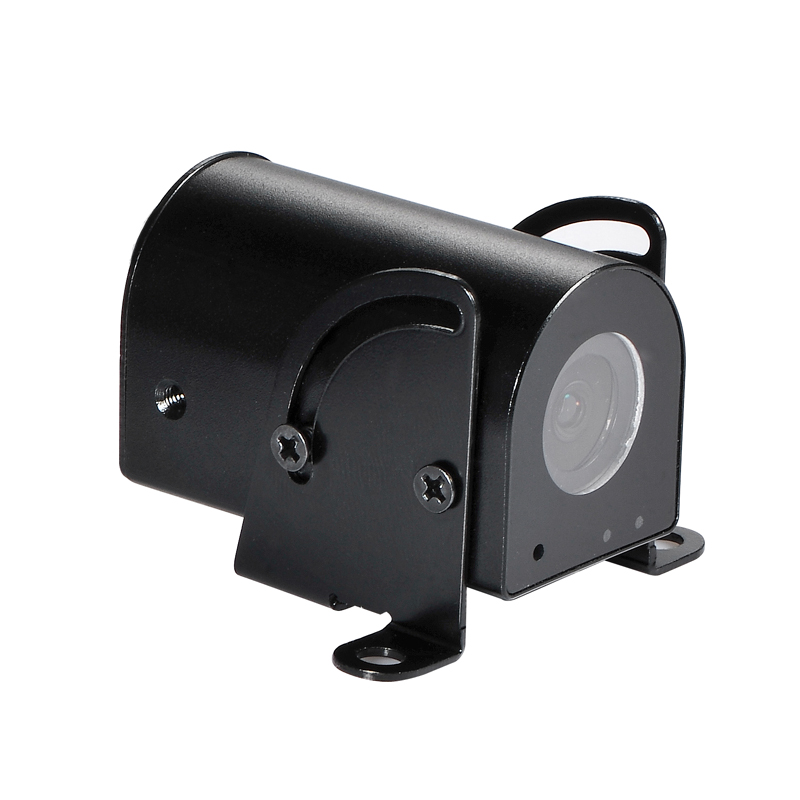

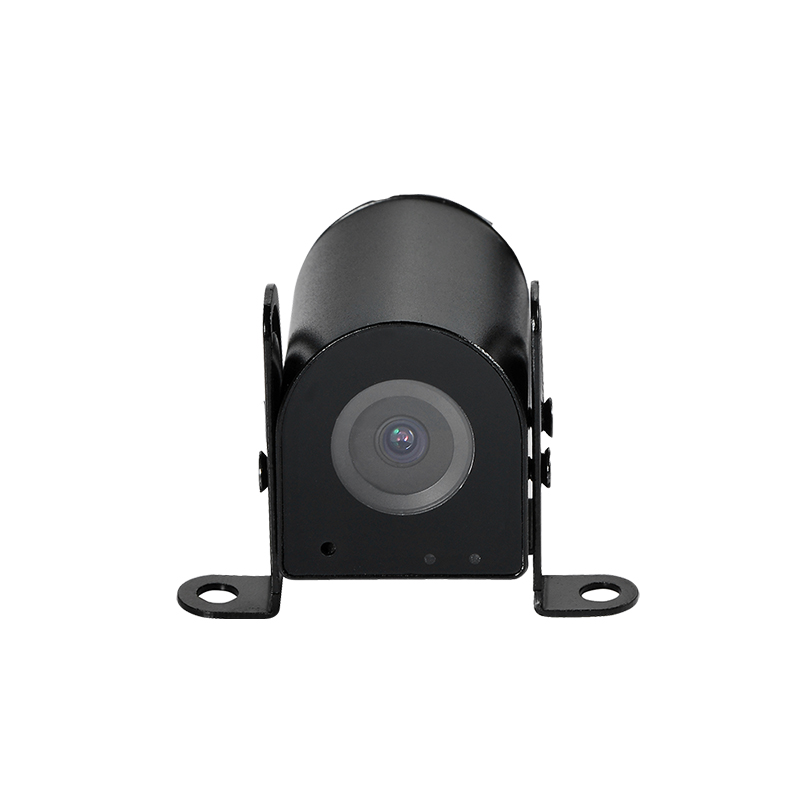

Product Name: 1080P Mini Front View Camera
Model No.: AHD6008FA
|
|
Model |
AHD6008FA |
|
Camera |
Image Sensor |
1/3' SC2232 2MP CMOS Sensor |
|
Effective Pixels |
1920(H)×1080P(V) |
|
|
Electronic Shutter |
Automatic shutter |
|
|
Video Frame Rate |
1920*1080@ 25fps |
|
|
Synchronization |
Auto |
|
|
Min. Illumination |
N/A |
|
|
Video Output |
4-pin aviation connector |
|
|
Audio |
Built-in microphone |
|
|
Camera Features |
Max. IR LEDs Length |
N/A |
|
Day/Night |
Color |
|
|
Noise Reduction |
3D/2D |
|
|
Lens |
Focal Length |
3.6mm |
|
Angle of View (HOV) |

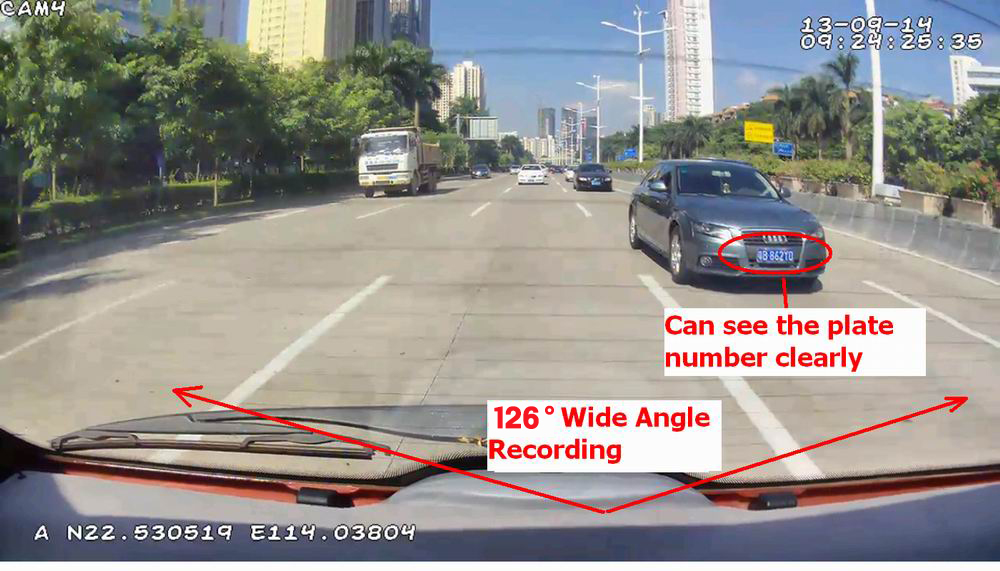

100° |
|
|
Mount Type |
M12 |
|
|
General |
Power Supply |
DC12V±20% |
|
Power Consumption |
<1.5W |
|
|
Working Environment |
-10°C~+60°C/ Less than 90%RH (no condensation) |
|
|
Transmission Distance |
﹤100m |
|
|
Ingress Protection |
N/A |
|
|
Dimensions |

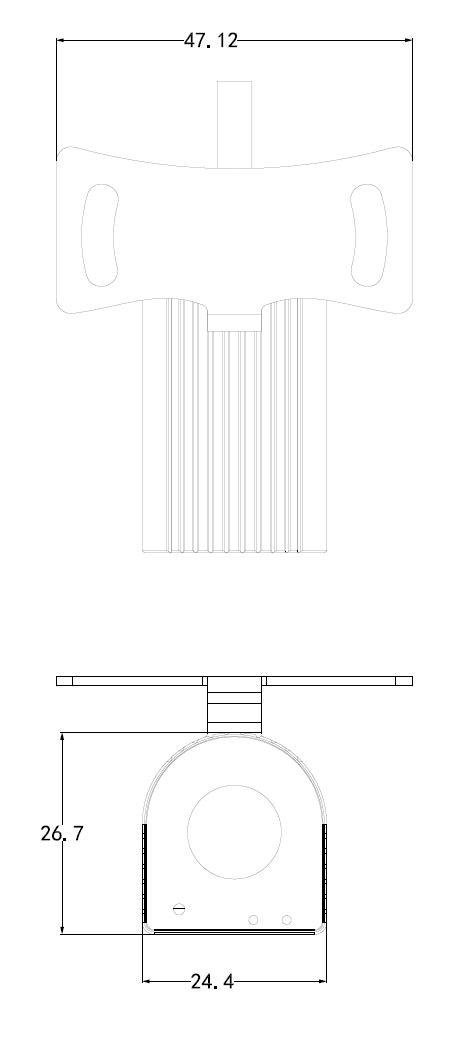

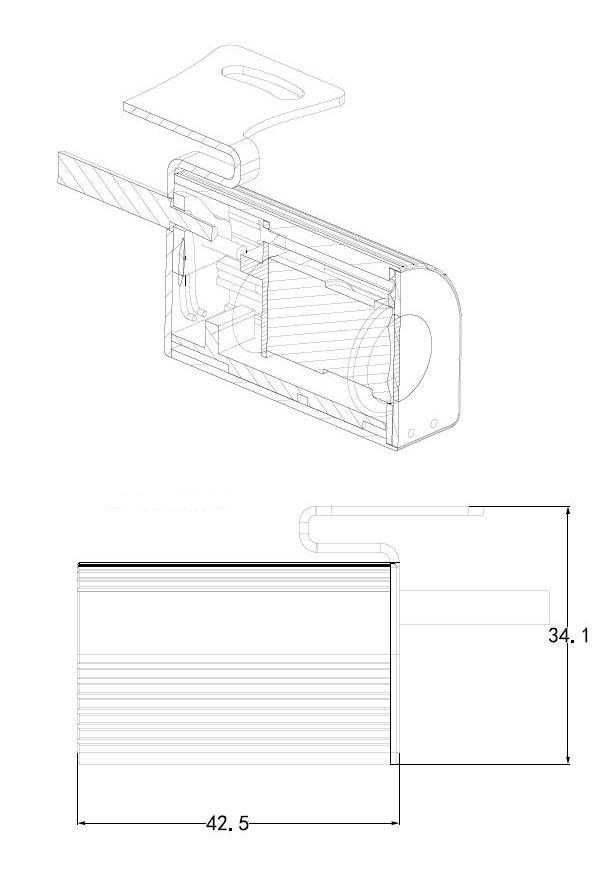

26.7*42.2*24.4mm |
|
|
Weight |
About 84g |
