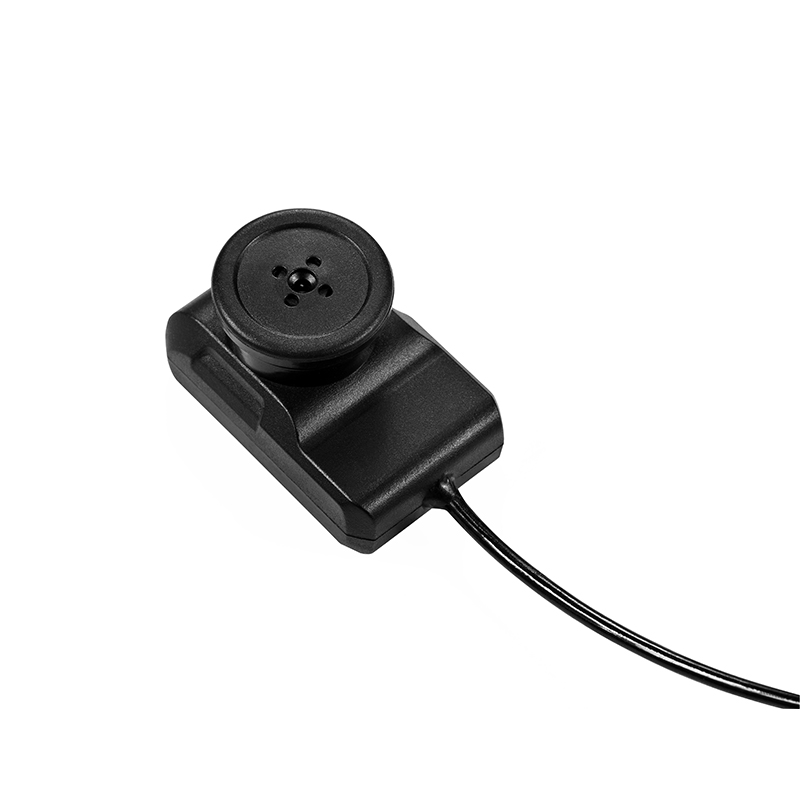

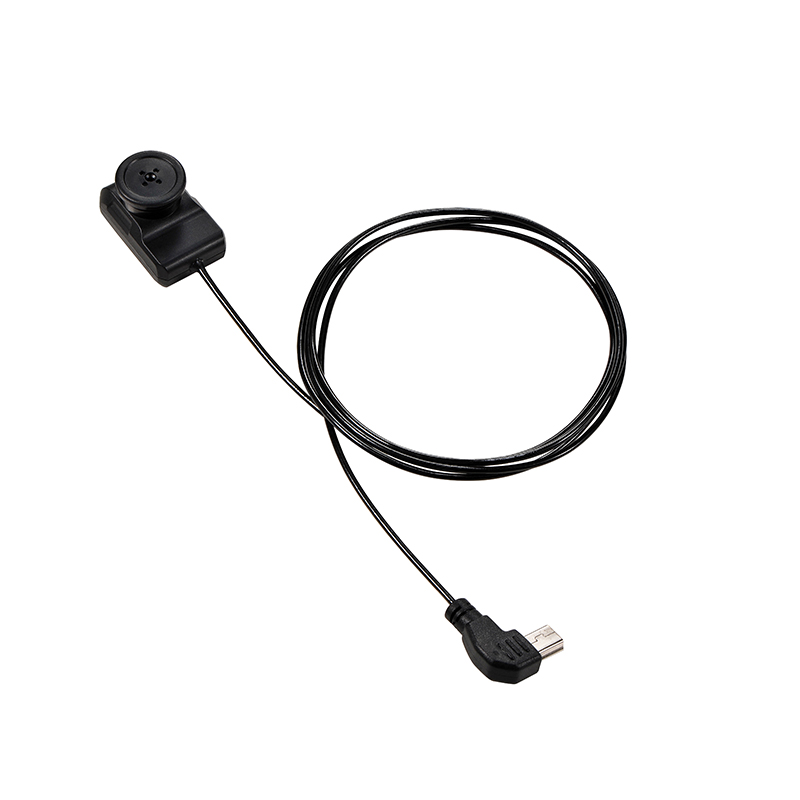

Product Name：External Camera
Model No.: EC003
|
Model |
EC003 |
|
|
Camera |
Image Sensor |
1/2.9" CMOS |
|
Effective Pixels |
1920(H)×1080(V) |
|
|
Electronic Shutter |
1/10s~1/100,000s |
|
|
Video Frame Rate |
1920×1080@30 fps |
|
|
Synchronization |
Auto |
|
|
Min. Illumination |
Color Mode, 0.1Lux@F2.2 |
|
|
Video Output |
LVDS |
|
|
Audio |
Analogue Audio |
|
|
Features |
Max. IR LEDs Length |
N/A |
|
Day/Night |
Color only |
|
|
Noise Reduction |
N/A |
|
|
Lens |
Focal Length |
3.8mm |
|
Angle of View (HOV) |
80° |
|
|
Mount Type |
M6 |
|
|
General |
Power Supply |
<5.2V |
|
Power Consumption |
<0.5W |
|
|
Working Environment |
-10°C~+60°C |
|
|
Ingress Protection |
IP56 |
|
|
Dimensions |
18.40x15.70x28.40mm |
|
