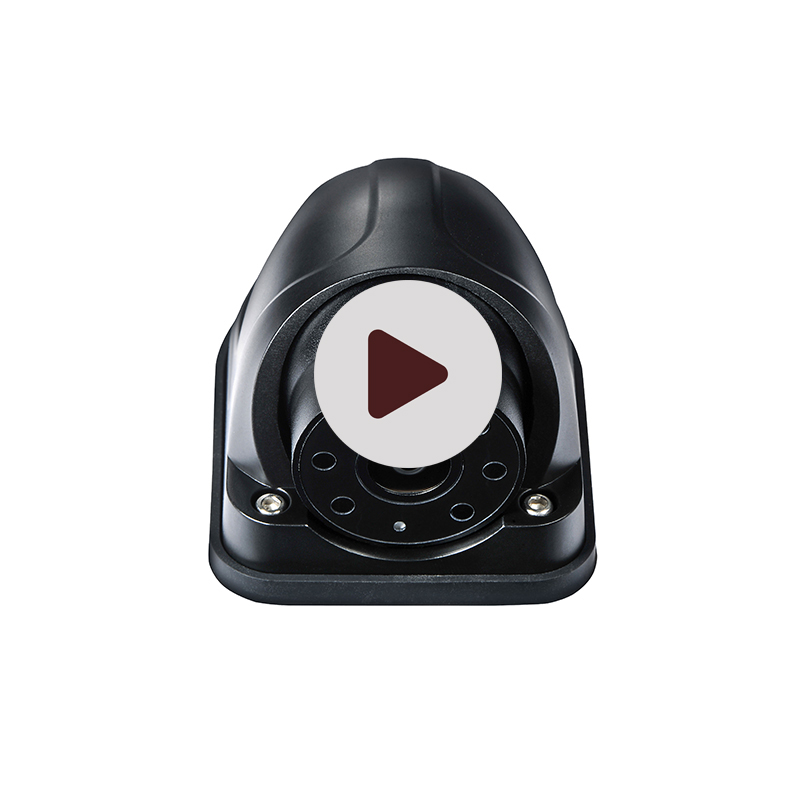

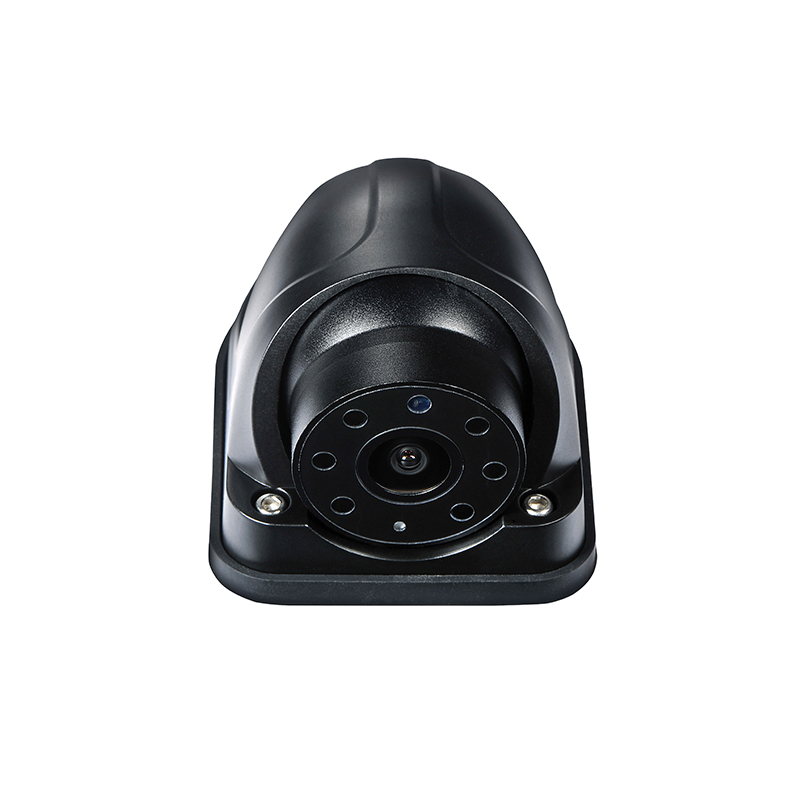

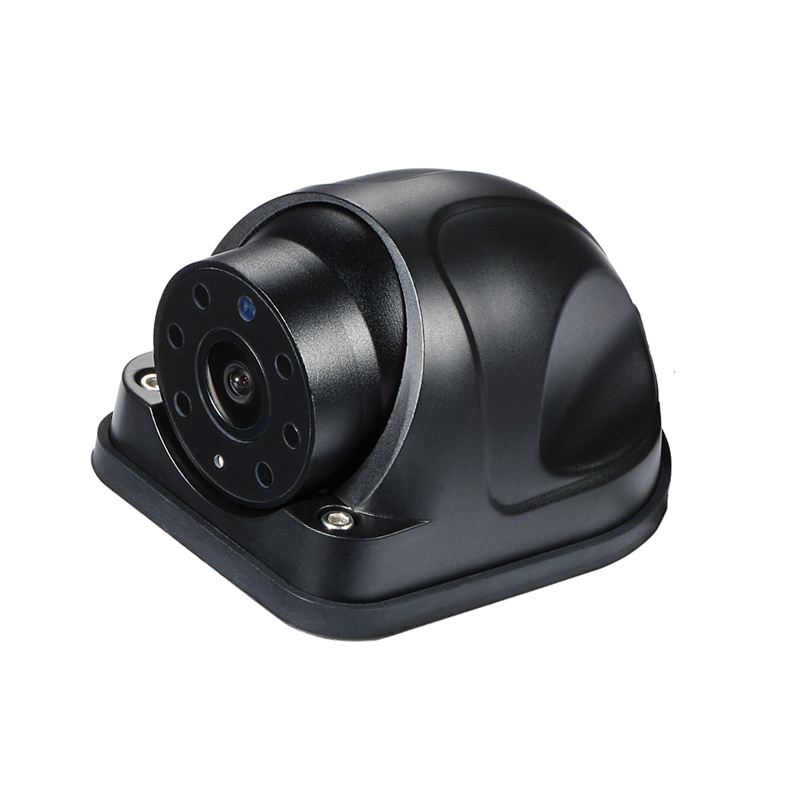

Product Name: 6068 Car Camera
Model No.: AHD6068FA
|
Model |
AHD6068FA |
|
|
Camera |
Image Sensor |
1/2.8' SC200AI 2MP CMOS Sensor |
|
Effective Pixels |
1920(H)×1080P(V) |
|
|
Electronic Shutter |
Automatic shutter |
|
|
Video Frame Rate |
1920*1080@ 30fps |
|
|
Synchronization |
Auto |
|
|
Min. Illumination |
Color Mode, 0.1Lux@F1.8(0Lux IR LED on) |
|
|
Video Output |
4-pin aviation connector |
|
|
Audio |
Built-in microphone(Optional) |
|
|
Camera Features |
Max. IR LEDs Length |
8m, Smart IR |
|
Day/Night |
Auto(ICR) / B&W / Color |
|
|
Noise Reduction |
2D NR |
|
|
Lens |
Focal Length |
ST4072 |
|
Angle of View (HOV) |
130° |
|
|
Mount Type |
M12 |
|
|
General |
Power Supply |
DC12V±20% |
|
Power Consumption |
Without IR on: <1.5W; With IR on: <2.5W (6 IR LEDs) |
|
|
Working Environment |
-10°C~+60°C/ Less than 90%RH (no condensation) |
|
|
Transmission Distance |
﹤100m |
|
|
Ingress Protection |
IP67 |
|
|
Dimensions |
69.6*52.8*41.9mm |
|
|
Weight |
About 168g |
|
