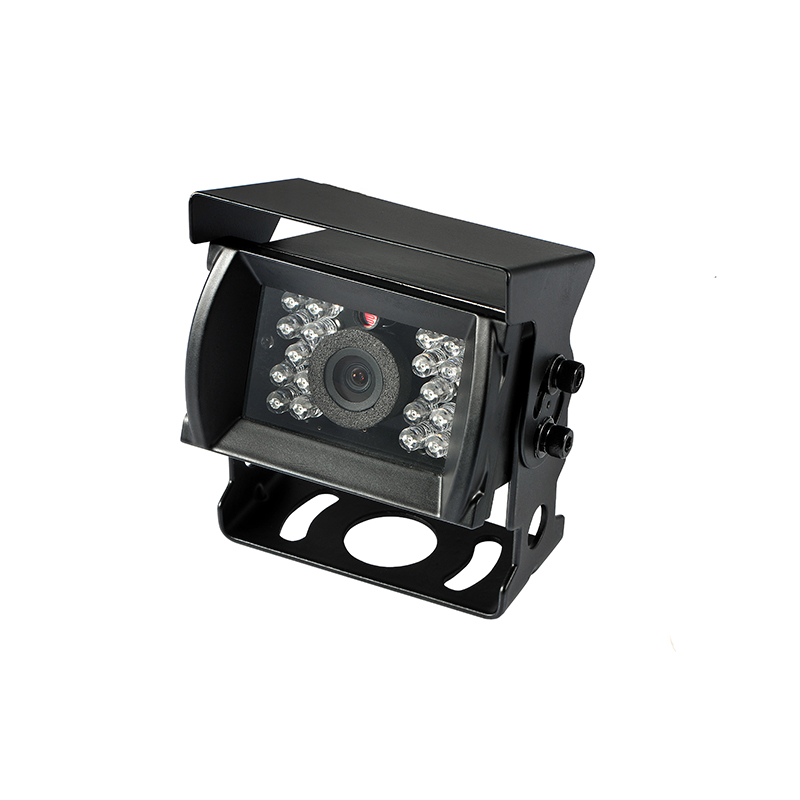

  • 1080P Rear View Camera with IR

Product Name

Product Name: 1080P Rear View Camera with IR

Model No.: AHD6028FA

Key Features

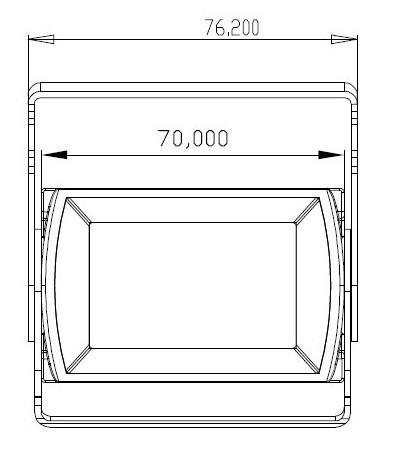

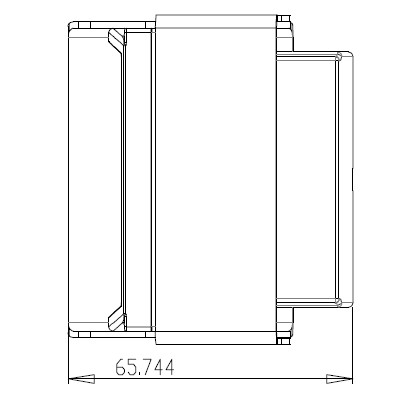

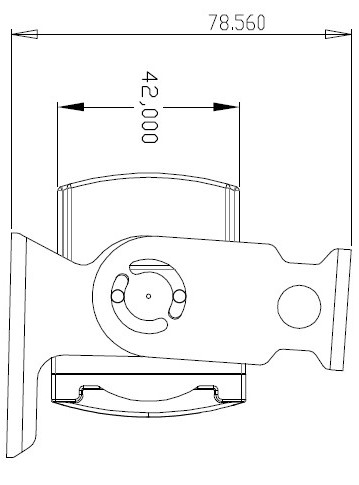

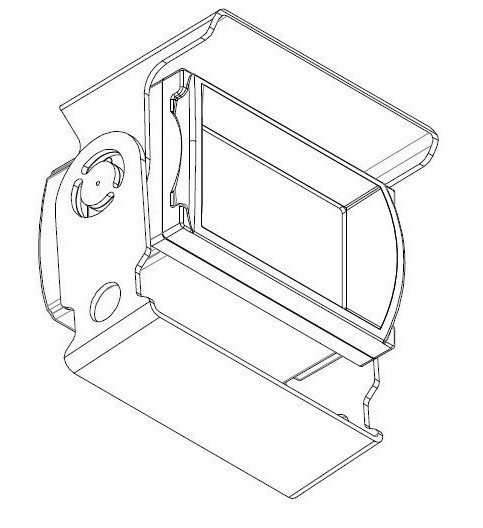

Product Size




Specification

Model

AHD6028FA

Camera

Image Sensor

1/2.8' SC200AI 2MP CMOS Sensor

Effective Pixels

1920(H)×1080P(V)

Electronic Shutter

Automatic shutter

Video Frame Rate

1920*1080@ 30fps

Synchronization

Internal

Min. Illumination

Color Mode, 0.1Lux@F1.8(0Lux IR LED on)

Video Output

4-pin aviation connector(with power)

Audio

built-in microphone(Optional)

Camera Features

Max. IR LEDs Length

8m, Smart IR

Day/Night

Auto(ICR) / B&W / Color

Noise Reduction

3D/2D

Lens

Focal Length

3.6mm

Angle of View (HOV)

100°

Mount Type

M12

General

Power Supply

DC12V±20%

Power Consumption

Without IR on: <1.5W; With IR on: <3.0W (18 IR LEDs)

Working Environment

-10°C~+60°C/ Less than 90%RH (no condensation)

Transmission Distance

100m

Ingress Protection

N/A

Dimensions

84.2*56.4*80mm

Weight

About 273g
