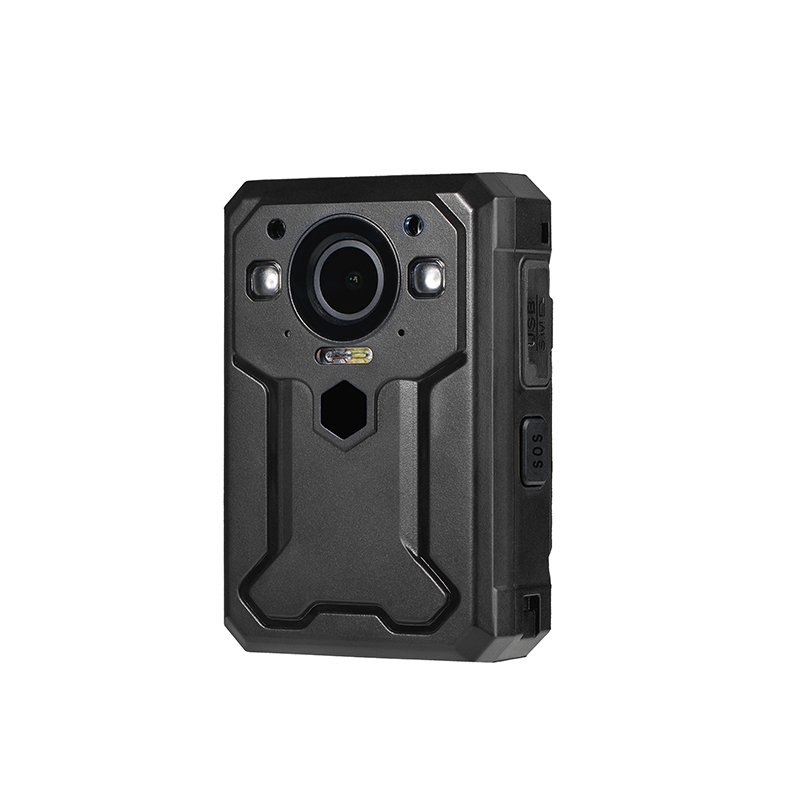

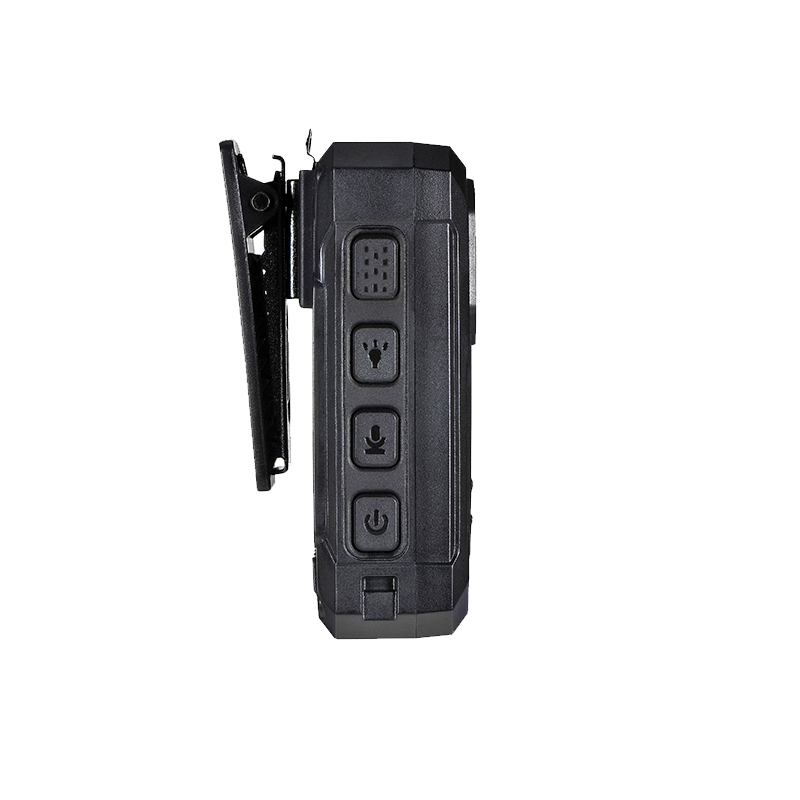

Product Name: Body Worn Camera
Model No.: BC607
• High Quality Recording: Record resolution up to 2660x1440. (1440P).
• Live Streaming: The camera has the ability to stream in real time via 4G or WiFi connectivity. High quality video can now be seen live in the control center allowing real-time situational awareness and decision making. The operator can also understand the wearer's positon by built-in GPS. Alternatively, camera wearer can send an alert back to a control centre with their live video, GPS location details.
• 17-Hour Full Shift Battery Life: Up to 17 Hour Battery Life ensures your camera lasts a whole shift which is critical to ensuring recording capability.
• Record File Protection: Using the AES256 encryption technology, the record file in the camera will be safe and protected from unauthorized access.
• Interphone Function: By pressing the PTT button on the camera, the camera can work like a walkie talkie and talk to other cameras anywhere in the world via 4G or WiFi connectivity.
• External Camera: The camera can connect with an external camera which can work in a complete stealth mode.
• Facial Recognition: The camera can scan and recognize the faces of potentially everyone they see while on patrol.
• Rugged and Waterproof: With rugged design and IP67 waterproof, the camera stands up to the most extreme environments. The camera can survive from drops & impact. It can also be used in the rain, dust and extreme temperatures.

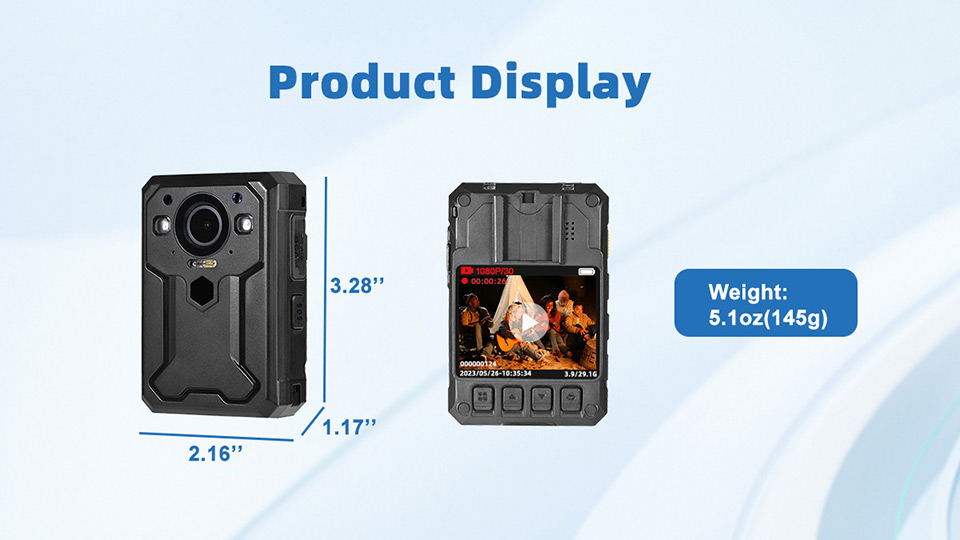

• Small and Lightweight: The camera weights only 5.1oz and dimension size is 3.28" x 2.16" x 1.17".
|
OS |
OS |
Linux 4.19.63 |
|
Booting time |
< 6 s |
|
|
Video |
Video input |
1x digital built-in Camera, available for external camera up to 1080p30 |
|
Video output |
2 inch IPS LCD screen (480x320) |
|
|
Recording resolution |
30fps @(720p/1080p/1296p /1440p) ; optional HDR1080p30 with HDR Sensor |
|
|
Record mode |
Record audio and video synchronously |
|
|
Compression |
H.264 / H.265 for Video, and AAC for audio |
|
|
Audio |
Audio input |
1x MIC input |
|
Audio output |
1x head phone interface |
|
|
Record mode |
Support to record audio only into .wav file |
|
|
Video process |
Live streaming |
720p/ 1080p (only for 4G device) |
|
Photograph |
2M, 8M, 32M |
|
|
Snap |
Support snapping during recording（the photo resolution base on recording） resolution） |
|
|
Storage |
Built in 32GB TF card (available for 32～128GB) |
|
|
Light source |
Flash light |
To increase brightness when recording or taking a photo |
|
Laser |
Fix the view when you record (optional) |
|
|
IR |
Up to 10 Meters with Visible shape image at night |
|
|
Two way radio |
Talk back |
Support two way radio between different devices(only for 4G device) |
|
Talk back with platform |
Support two way radio between device and platform(only for 4G device) |
|
|
Lens |
Lens’s angle |
110° (HOV), 140° (FOV); optional lens with 122°(HOV) and 150°(FOV) |
|
Alarm |
Alarm input |
Support alarm input and the alarm can be show in platform |
|
Interface |
USB |
1x USB2.0, for charging, firmware updating |
|
Network |
Protocol |
TCP/IP |
|
4G |
Optional, built in 4G module(WCDMA/FDD-LTE/TDD-LTE) for live view |
|
|
Wi-Fi |
Optional, support Wi-Fi in AP or Client mode (to access internet via Wireless Router), for live view or uploading recorded files directly into cloud server |
|
|
Dock Station |
Connect to GigE dock station and upload recorded files directly into cloud server |
|
|
GPS |
GPS |
Optional module for GPS/BDS/GLONASS, to record coordinates and speed |
|
Firmware |
OSD |
Display and burn in text of date, time, officer ID, geo-tags, speed |
|
Overwrite |
Support overwrite or non-overwrite mode |
|
|
Play back |
Support play back, file listed by time and alarm |
|
|
Pre-Rec/post-Rec |
Maximum 5 min pre-recording and 5 min post-recording |
|
|
De-Warp |
Support de-Warp to correct distorted image |
|
|
Safe mode |
Need password to enter Setting or Playback in safe mode |
|
|
Record encryption |
Support Record encryption, encrypted video can be played in special player |
|
|
Log |
Record power ON/Off, setting change, start record, alarm etc. |
|
|
Software |
hPlayer |
Player software, play multiple cameras together, can also play the encrypted file |
|
CMSV6 |
Support live view/live tracking/historical track(4G device only) |
|
|
Upgrade |
Firmware maintain |
Firmware can be upgraded through USB/Network |
|
Working condition |
Temperature |
-30~65℃ |
|
Humidity |
40%~80% |
|
|
Other |
Time |
synchronize with GPS, internet, PC |
|
Factory Default |
Can set to default factory setting |
|
|
Indicators |
Power, Record, Snap, Audio record, Charging, Charging Complete |
|
|
Battery |
2850mAh non-replaceable battery, 1080p30 recording for 14h, standby for 45h, live view streaming up to 7h, fully Charging time about 2.5h |
|
|
Optional 3600mAh non-replaceable battery, 1080p30 recording for 17h, standby up to 56h, live view streaming up to 8.5h,fully Charging time about 3h |
||
|
Optional 4200mAh non-replaceable battery, 1080p30 recording for 20h, standby up to 65h, live view streaming up to 10h, fully Charging time about 3.5h |
||
|
Waterproof |
IP67 |
|
|
Size |
83.2*54.8*29.8mm |
|
|
Weight |
About 140g (with 2850mAh), 146g(with 3600mAh) and 156g (with 4200mAh) |
