Product Name

Product Name: 4CH HYBRID MDVR
Product Model: HDVR9804H

Key Features

General Introduction

The Hybrid Mobile HDD video recorder is a compact, full-featured recording system that uses a hard disc as a storage device. The recorder unit and associated accessories are specifically designed for operation in a mobile environment.

The Mobile HDD video record system, used in conjunction with the cameras, records up to 4 channels of full-motion video and audio data to a removable hard disc. The firmware-driven menu system provides a simple method for configuring the unit’s operation as well as searching for and viewing previously recorded AV records.


1.1 Video And Audio

High Profile video compression, real time recording 30 fps. Frame rate adjustable for each channel.Audio compression: G.711 codec. This codec offers high compression with high quality audio.4 channels 1080P resolution for analog camera.


1.2 Power Management

Reliable power management, wide voltage: +12VDC~+32VDC; The power input is protected against short positive transient (1500 watts peak pulse power capability with a 10x1000 us waveform); The power input is protected against negative voltage.

Applicable for vehicles with +12V or +24V battery.The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit.

Can use ignition to control the power.

DVR can monitor battery voltage after Ignition off, and auto into sleep mode when voltage is bellow specified level.


1.3 Recording Mode

Continuous record.

Support schedule recording.

Support alarm recording.

Support alarm pre-recording and post-recording.

Support motion detection recording.


1.4 GPS Time Synchronization & Time Zone.

Synchronize the DVR system time with GPS automatically.

Support All Time Zones Worldwide.

Support DST (Daylight Saving Time).


1.5 Speed And vehichle status recording

Record vehicle speed and car id with audio and video.

Support 3 sensors, can be connected to speed, ignition, brake, return, right turn, left turn light etc.

Over-speed alarm and trigger recording with separated files.


1.6 Hard Disk

Support hard disk up to 6T. Please note, the inside height of the hard disk case is 10.2mm, please select the hard disk whose height is less than 9.5mm.


1.7 SD Card

Support SDHC card within 32GByte.

Support SDXC card more than 64GByte (Maxim 2048GByte)

Support hot-plug when the DVR system is not recording or remote-operation(remote copying or playing back)

Note: If you remove the SD card while recording or operating (remote copying or playing back), it might cause the damage of the files on SD card. While recording, the yellow light on the front panel will be on. So please stop recording or operating until the yellow light is off if you need to remove the SD card.


1.8 Multiple Player Supported

VLC media player (version1.0.0 or above);

Storm player (Version 2009 or above);

Winamp (Version 5.531 or above).


Specification

Model

HDVR9804H

System

Operating System

Linux 4.19.90

Start up Time

<20 s (From Powered on to start recording)

Operator Interface

English / Simplified Chinese/Russian

Storage

2.5” Hard Disk(up to 6TB), SSD(up to 2TB) or SD Card (up to 256GB)

UI

GUI

Video System

support 1080p30 recording

Video

Video Input

Maximum for 4x 1080p Analog/AHD cameras

Video output

2 Video Output (1 HDMI output, 1 CVBS output, HDMI is optional)

Preview

Support FullScreen/Dual View/Quad View/6 Cameras view/8 Cameras view/9 Cameras view/10 Cameras view/12 Cameras view

Standard Stream

ISO 14496-10

Recording Resolution

Support 1920x1080/1280x720/960x540(According to the type of camera)

Recording

Supports normal, schedule, alarm recording and continuous

Record File

AVI file, record video and audio at same time

Bitrate

1008000 kbps for each camera

Max fps (total)

120fps@1080P for H.264 analog camera

Audio

Audio Input

4 audio input(built in the camera)

Audio compression

PCM(According to the type of camera)

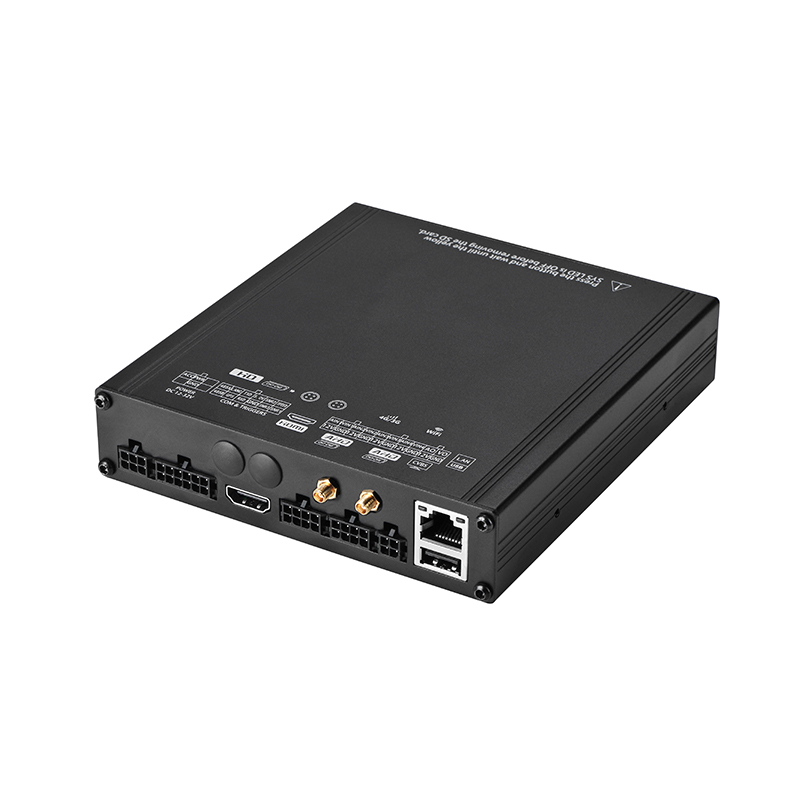

Interface I/O

LAN

1(RJ-45) 10M / 100M Ethernet port

USB

Two USB 2.0, can be used for mouse, USB stick

RS485

One RS485 port

Serial

One RS232 port (For GPS)

Network

WiFi(Optional)

Build in 802.11b/g/n AP, speed up to 300Mbps

Protocol

TCP/IP

Communication(Optional)

build in 3G/4G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE)

Alarm & Sensor

Inputs

3 Alarm input, 1 ignition, 1 Panic button, G-Sensor

Outputs

1 beeper, Alarm OSD

Multi-mode

Activation by video loss, maximum permissible speed, Collision, stroage space, Video Motion, etc..

Power Supply

Ignition key

Recording starts when ignition is on, stops with delay time when ignition is off.

Power Consumption

Less 5.0W (No camera power consumption included)

Power Input

12VDC32VDC

Power Output

11.5V/1.5A (4 channels)

G-Sensor

G-Sensor

Support for three-axis motion detection

Physical Characters

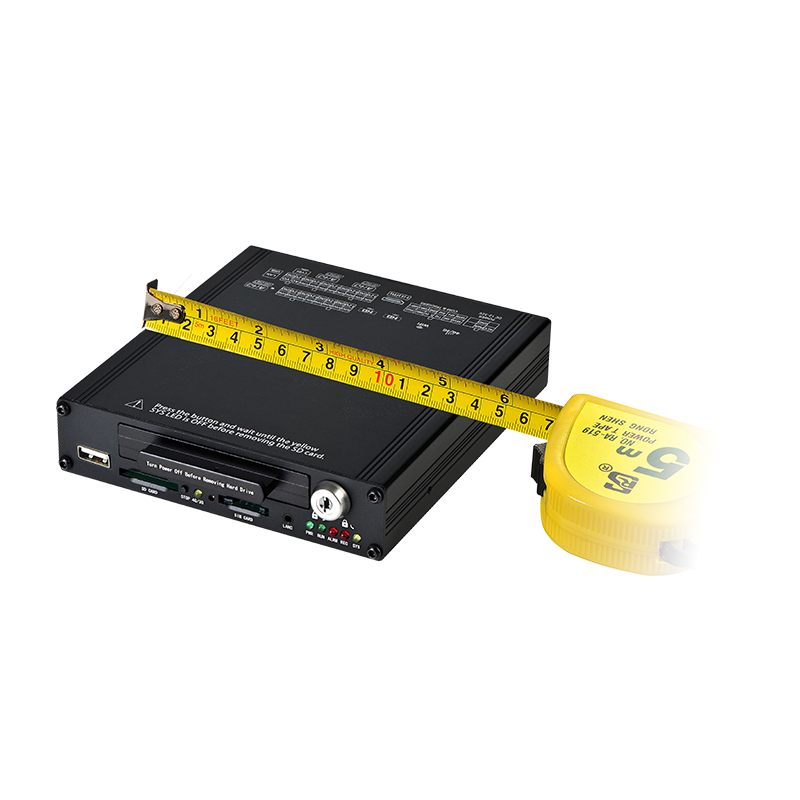

Dimension

162.3x133.0x30.2 mm

Weight

About 0.55kgs

Others

Backup

By WiFi (300Mbps, Actual download speed up to 150Mbps)

Clock

Internal, permanent calendar, Time sync from GPS (if available)

GPS

Support GPS/GLONASS/BEIDOUrecording location, speed, live tracking

Function Dual Streaming

Two different bit stream for recording and live streaming via 4G/3G

Self-protection

Protection against overload, short circuit and reverse polarity

Reset

Option to return to factory default setting

LED’s

Indicates Power, RUN, Alarm, Media Access, Recording status, network and 3G/4G

Method of writing and reading of data

Overwrite ON/OFF selectable

Environment

Operating Temperature

-25 55°C

Relative humidity

5%93%

Vibration resistance

< 3 Grms

Resistance to mechanical shock

< 1200 Grms

ACC

<4.5V

Ignition Off

>6.2V

Ignition On

Embedded Software

Config. FPS per channel

allows (1~30fps)

ID records vehicle license plate

Support

USB

Support

Rename channels

Support

Watermark

Includes date and time, latitude and longitude, vehicle speed, and vehicle ID plate and name or channel number

Schedule

Settings hour, minute, 3 time plans per day

Image Playback

Support play back, file listed by date and time, alarm

Firmware Upgrade

Can use hard disk/USB disk/SD card/remote upgrade via 4G

Playback Speed

Support from 1/32 to 32

Software

hPlayer

Player software, play multiple cameras together, can also play the encrypted file

CMSV6

Used for 4G/3G model only, support live view/live tracking/historical track/remote upgrade etc
