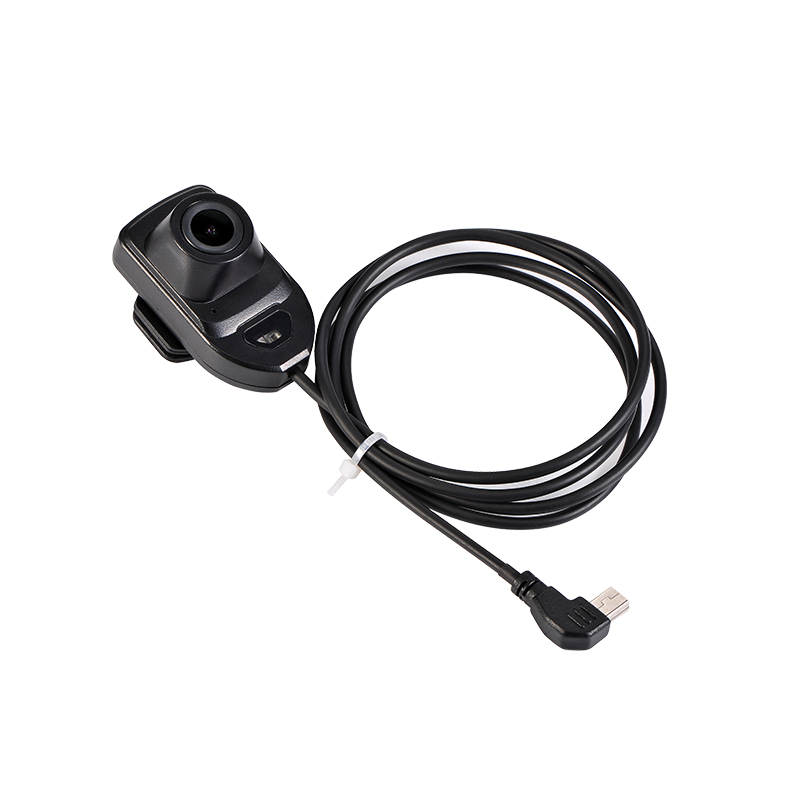

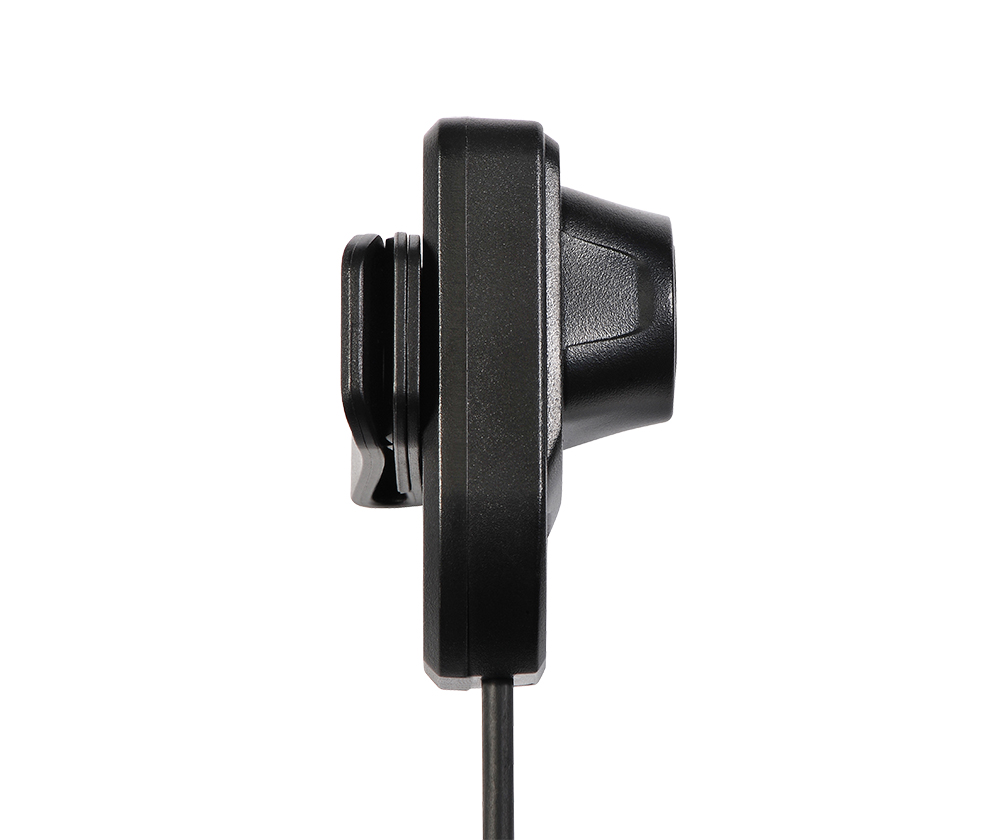

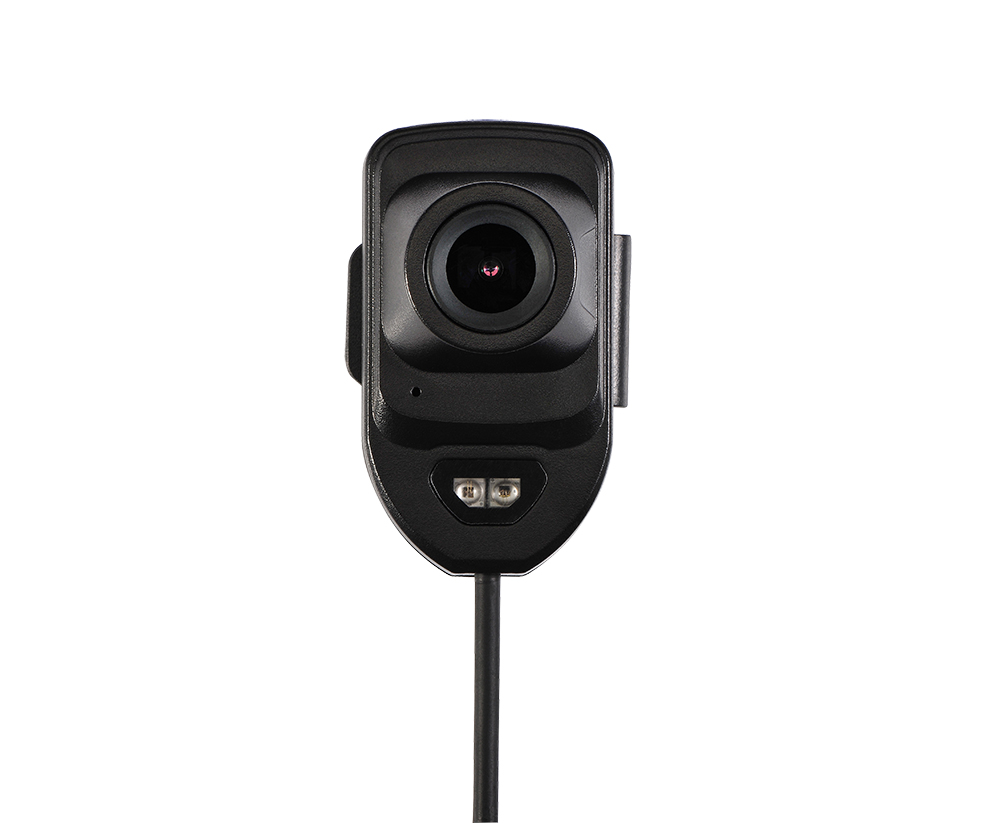

Product Name: External Camera
Model No.: EC101
|
Model |
EC101 |
|
|
Camera |
Image Sensor |
SC200AI |
|
Effective Pixels |
1920(H)×1080(V) |
|
|
Electronic Shutter |
1/10s~1/100,000s |
|
|
Video Frame Rate |
1920×1080@30 fps |
|
|
Synchronization |
Auto |
|
|
Min. Illumination |
Color Mode, 0.1Lux@F2.2(0Lux IR ON) |
|
|
Video Output |
AHD |
|
|
Audio |
Analogue Audio |
|
|
Features |
Max. IR LEDs Length |
2m, Smart IR |
|
Day/Night |
Auto(ICR)/B&W/Color |
|
|
Noise Reduction |
N/A |
|
|
Lens |
Focal Length |
4.4 |
|
Angle of View (HOV) |
120° |
|
|
Mount Type |
Mini USB |
|
|
General |
Power Supply |
<5.2V |
|
Power Consumption |
IR OFF: <1.2W ; IR ON: <2W (2 IR) |
|
|
Working Environment |
-10°C~+60°C |
|
|
Ingress Protection |
IP67 |
|
|
Dimensions |
51.3*28.4*29.3mm |
|
|
Weight |
About 40g |
|
