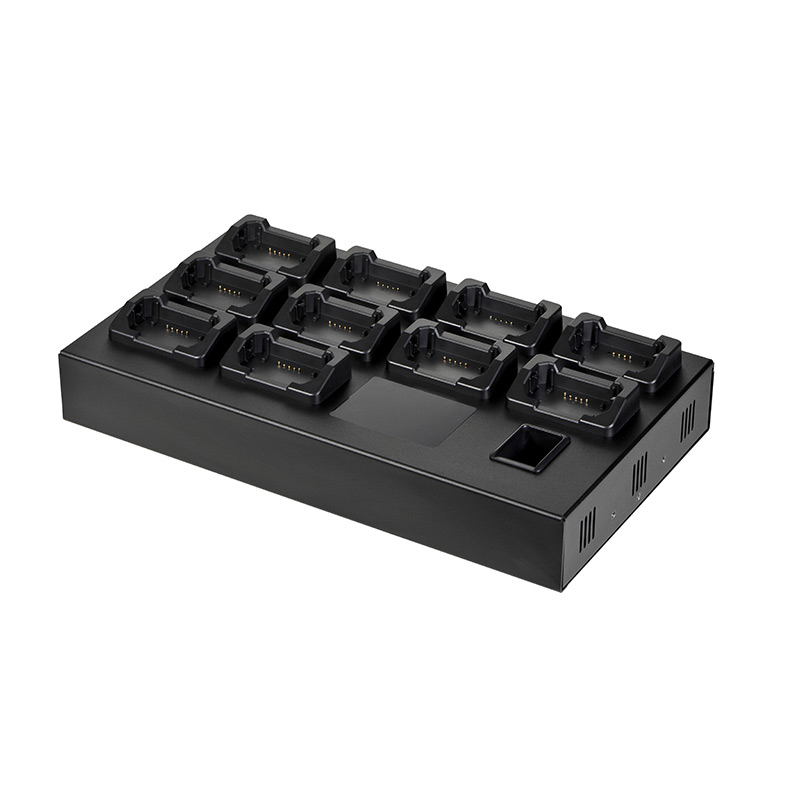

Product Name: Docking Station
Model No.: DSN07S
|
model |
DSN07S |
|
|
OS |
OS |
Debian |
|
Hardware |
CPU |
2.2 GHz 8-core processor |
|
RAM |
8GByte LPDDR4X |
|
|
ROM |
64GByte eMMC |
|
|
Network interface |
2*Realtek RTL8211F-CG 10M/100M/1000M |
|
|
Graphics coprocessor |
Mali-G52 MC3 |
|
|
Storage |
Hard Drive interface |
Maxmum support 2xHDD, with 2 hard driver tray |
|
Hot-Swappable |
Not supported |
|
|
interface |

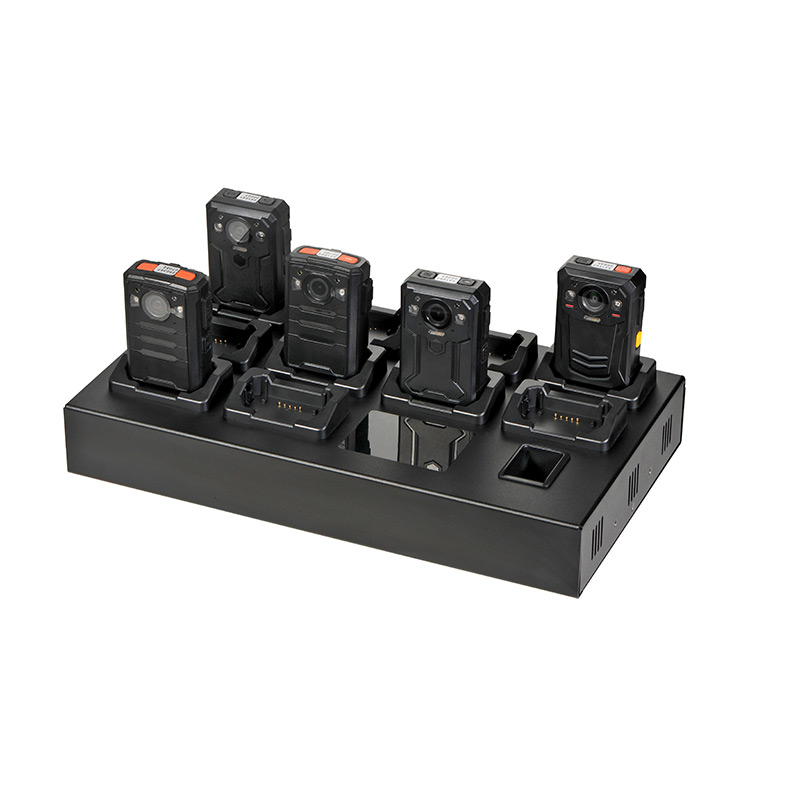

Cradle Ports |
10pcs per station |
|
Connect Mode |
5pin Thimble Contact |
|
|
Lock Mode |
Buckle |
|
|

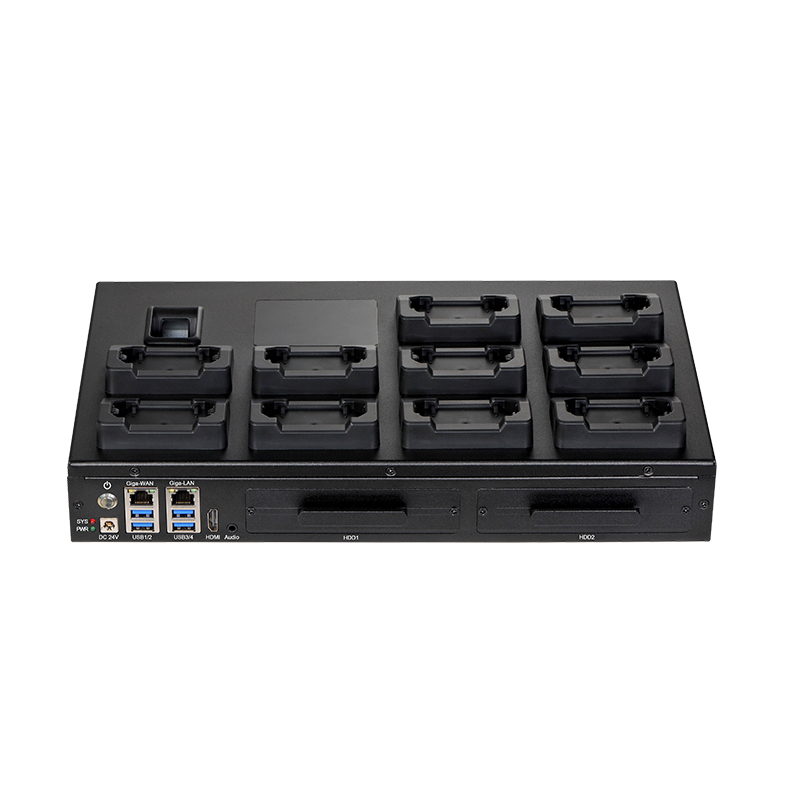

HDMI |
1x HDMI port |
|
|
Audio |
3.5mm audio jack |
|
|
USB |
4x USB3.0 port |
|
|
Power |
Power input |
24V/7A MAX |
|
Power for charging |
5V/ 2.0A per port |
|
|
Network |
RJ45 port |
2x gigabit ethernet port |
|
Maximun Speed |
1000Mbps |
|
|
Protocol |
TCP/IP, UDP |
|
|
IP address |
Static IP & DHCP |
|
|
Dock Port ID |
Automatic Port ID identification |
|
|
Fingerprint |
Fingerprint reading speed |
<1.5 seconds |
|
NFC |
Card type |
Mifare one(M1), S50, S70, NTAG2xx serie, F08 etc |
|
RFID Protocol |
ISO14443-A, ISO14443-B |
|
|
Reading distance |
20mm~60mm |
|
|
Accessories |
Power Cable |
DC 24V/5A |
|
Ethernet cable |
1pc/2.0m |
|
|
Other |
Material |
Aluminum Base + ABS Cradle |
|
Temperature |
-10--60℃ |
|
|
Humidity |
40%～80% |
|
|
Dimension |
360.0x210.0x69.50mm |
|
|
Weight |
No DISK is about 2.4KG；2 DISK is about 3KG |
